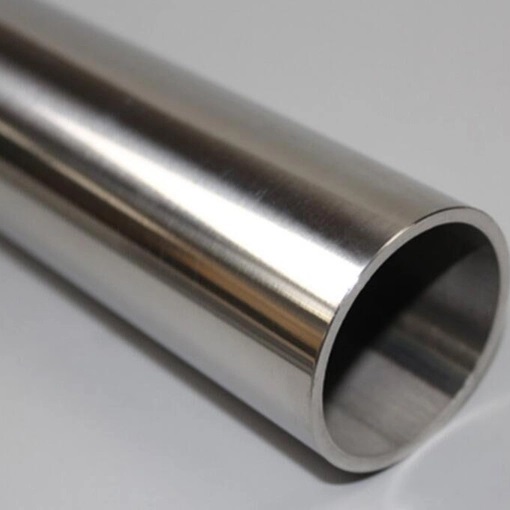

Monel metal is a high-performance nickel-copper alloy known for its exceptional strength, corrosion resistance, and thermal stability. Composed primarily of nickel and copper, with minor additions of iron, manganese, and other elements, Monel exhibits superior resistance to harsh chemical environments and seawater. Its unique combination of mechanical properties and metallurgical stability makes it an ideal material for demanding industrial use. Variants such as Monel 400 and Monel K-500 offer enhanced strength and hardness.
Monel is a group of nickel-based alloys primarily composed of nickel (typically 63% to 70%) and copper (20% to 29%), with trace amounts of iron (2% to 5%), manganese (up to 2%), carbon (up to 0.3%), and silicon (up to 2%). The exact percentages can vary depending on the specific Monel grade, such as Monel 400 or Monel K-500. Nickel serves as the base element, providing excellent corrosion resistance and high strength, while copper enhances the material’s resistance to acids and alkalis. Small additions of iron and manganese improve mechanical properties like hardness and tensile strength. In precipitation-hardened versions like Monel K-500, elements such as aluminum and titanium are also added to increase strength and wear resistance. This carefully balanced composition gives Monel its unique ability to withstand harsh chemical environments, high pressures, and extreme temperatures.

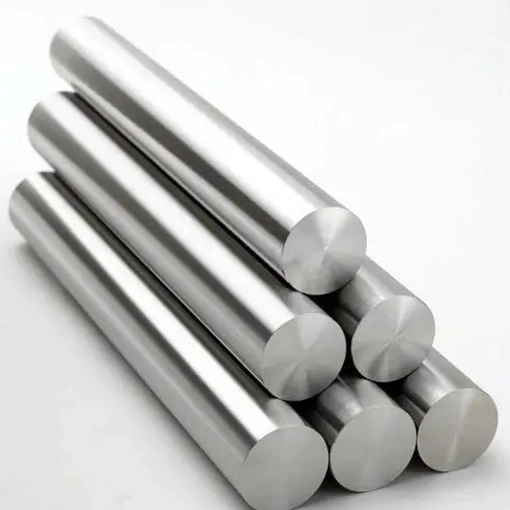

Inconel is a family of nickel-chromium-based superalloys known for their exceptional strength, oxidation resistance, and corrosion resistance at extremely high temperatures. What Is the Primary Base Metal in Inconel? The primary elements in Inconel alloys are nickel (over 50%) and chromium, often combined with smaller amounts of iron, molybdenum, cobalt, aluminum, titanium, and niobium depending on the grade.
Nickel provides the base for excellent corrosion and heat resistance.
Chromium improves oxidation resistance, forming a protective layer when exposed to air.
Molybdenum and niobium enhance strength and resistance to pitting and crevice corrosion.
Aluminum and titanium are added to some grades (like Inconel 718) for precipitation hardening, which boosts strength.
1.Primary Composition
Monel is primarily composed of nickel (63–70%) and copper (20–29%), with small amounts of iron, manganese, carbon, and silicon. This combination gives Monel its exceptional resistance to corrosion, particularly in marine and chemical environments. The high nickel content ensures strength and durability, while copper enhances resistance to acids and alkalis.
Inconel is a nickel-based alloy where nickel makes up more than 50%, combined mainly with chromium, along with smaller amounts of molybdenum, niobium, iron, and titanium. The addition of chromium provides Inconel with excellent oxidation resistance, especially at elevated temperatures, while other elements enhance strength, hardness, and corrosion resistance under extreme conditions.
2.Corrosion Resistance
Monel is renowned for its outstanding corrosion resistance, particularly in saltwater, brine, and various chemical environments such as acids and alkalis. It forms a protective oxide layer that prevents deterioration, making it ideal for harsh marine conditions and chemical processing applications where standard metals would fail.
Inconel also offers excellent corrosion resistance, but it is especially resistant to oxidizing environments at high temperatures. The chromium content forms a stable, passive oxide layer that protects against oxidation, scaling, and corrosive attacks even when exposed to aggressive conditions like those found in aerospace and nuclear industries.
3.Temperature Resistance
Monel maintains good mechanical properties at elevated temperatures but is generally more suited for moderate high-temperature applications. It can withstand heat and maintain strength up to around 1000°F (538°C), beyond which its performance gradually declines compared to superalloys designed for extreme heat.
Inconel is specifically engineered for extreme high-temperature environments. It retains its strength, corrosion resistance, and structural stability at temperatures exceeding 2000°F (1093°C). This exceptional performance under thermal stress makes Inconel ideal for aerospace engines, gas turbines, and other high-heat systems.
4.Key Strengths
Monel
Monel’s key strengths lie in its superior corrosion resistance, toughness, and durability in both seawater and chemical environments. It is particularly valued for resisting pitting, crevice corrosion, and stress-corrosion cracking, making it a reliable choice for marine and chemical processing systems.
Inconel
Inconel’s greatest strengths are its ability to maintain mechanical integrity at extreme temperatures and its resistance to oxidation and creep deformation. It performs reliably under intense heat, pressure, and corrosive atmospheres, making it essential for high-performance industries like aerospace, energy, and chemical processing.
| Feature | Monel | Inconel |
| Primary Composition | Nickel (63–70%) and Copper (20–29%) | Nickel (over 50%) and Chromium, with additions like molybdenum, iron, and niobium |
| Corrosion Resistance | Excellent, especially in seawater and chemical environments | Outstanding, particularly at high temperatures and against oxidizing agents |
| Temperature Resistance | Good resistance to moderate high temperatures | Exceptional resistance to extremely high temperatures (up to 2000°F / 1093°C) |
| Strength | Strong and tough, especially in marine conditions | Extremely strong, even at elevated temperatures |
| Applications | Marine engineering, chemical processing, oil and gas | Aerospace, jet engines, gas turbines, nuclear reactors |
| Key Strengths | Superior performance in saltwater and acidic environments | Excellent oxidation resistance, high-temperature strength, and creep resistance |
| Cost | Generally less expensive than Inconel | Typically more expensive due to complex composition and specialized properties |
1. High Cost
Inconel alloys tend to be more expensive than many other metals due to their complex composition and specialized properties. The manufacturing process is often more costly, especially for higher-grade alloys like Inconel 718.
2. Difficult to Machine
Inconel’s high strength and hardness, especially at elevated temperatures, make it difficult to machine and fabricate. It requires specialized tools and techniques, which can increase production costs and time.
3. Weight
Inconel alloys are relatively heavy compared to some other materials, which can be a drawback in applications where reducing weight is a priority, such as in aerospace or automotive industries.
4. Brittleness at Low Temperatures
While Inconel performs well at high temperatures, its brittleness can increase at low temperatures, which may limit its use in certain cryogenic or cold-temperature environments.
5. Limited Weldability
Inconel alloys, especially high-chromium versions, can be difficult to weld without special techniques and careful attention to avoid cracking. This can complicate manufacturing processes and lead to higher costs.
Monel is a versatile and high-performance alloy used across a wide range of industries, primarily due to its exceptional resistance to corrosion and its strength in challenging environments. Its primary components, nickel and copper, provide superior protection against saltwater, acids, and alkalis, making it an ideal material for marine applications. Monel is widely used in shipbuilding, offshore oil rigs, and marine equipment, where exposure to seawater demands a material that can withstand corrosion without compromising on strength.
Beyond marine use, Monel is also commonly found in the chemical processing industry. Its resistance to corrosion extends to a wide variety of chemicals, including sulfuric acid, hydrochloric acid, and alkalis, making it suitable for pipes, valves, heat exchangers, and reactors. Its durability in harsh chemical environments ensures the longevity of equipment in sectors such as oil and gas and petrochemicals, where performance and safety are critical.
Additionally, Monel is valued in aerospace and engineering fields for its high tensile strength and durability at elevated temperatures. Monel 400, in particular, is used in components like turbine blades, springs, and fasteners due to its ability to retain strength in high-temperature conditions. It is also used in marine propellers, pumps, and valves, where its mechanical properties and resistance to stress-corrosion cracking are key advantages in maintaining long-term operational efficiency in extreme conditions.
Inconel is a high-performance superalloy primarily used in extreme high-temperature and corrosive environments where other materials would fail. Due to its exceptional strength, oxidation resistance, and ability to retain structural integrity at elevated temperatures, Inconel is widely used in the aerospace, energy, and chemical industries. Its ability to perform in both high heat and harsh chemical conditions makes it invaluable in manufacturing components like gas turbines, jet engines, rocket engines, and heat exchangers. These applications require materials that can endure continuous exposure to high temperatures, intense pressure, and oxidizing gases.
In addition to aerospace and energy sectors, Inconel is often used in chemical processing industries. It’s particularly beneficial for equipment that must withstand high temperatures and highly corrosive substances. Inconel 625, for example, is commonly used in chemical reactors, piping systems, valves, and vessels, where its resistance to chemical corrosion, high-temperature strength, and low-creep properties are essential for maintaining safety and performance over long periods.
Furthermore, Inconel is used in nuclear reactors, marine applications, and even industrial furnaces. Its ability to resist oxidation and corrosion in extreme environments makes it ideal for high-stress applications that require thermal stability and long-term durability. Inconel’s versatility, particularly in environments subject to extreme heat and corrosive agents, allows it to be a critical material in industries where performance and reliability are non-negotiable.
| Application Area | Monel | Inconel |
| Marine Engineering | Propeller shafts, pump shafts, valves, piping systems, seawater desalination plants | (Less common for primary structural components, but may be used for specific parts in extreme corrosive environments) |
| Chemical & Hydrocarbon Processing | Handling hydrofluoric acid, sulfuric acid under reducing conditions, alkaline solutions | High-temperature reactors, distillation columns |
| Aerospace | Some components, locking wire | Gas turbine components, jet engine parts, exhaust systems, thrust reversers |
| Oil & Gas | Downhole equipment, valves | (Applications in high-temperature, high-pressure, and corrosive environments) |
| Power Generation | (Applications in specific corrosive environments) | Nuclear reactor components, heat exchangers |
| Automotive | (Fewer major applications) | Exhaust systems in high-performance vehicles |
| Heat Treating Equipment | (Fewer major applications) | Furnace components, fixtures |
